500 mm cutter bar

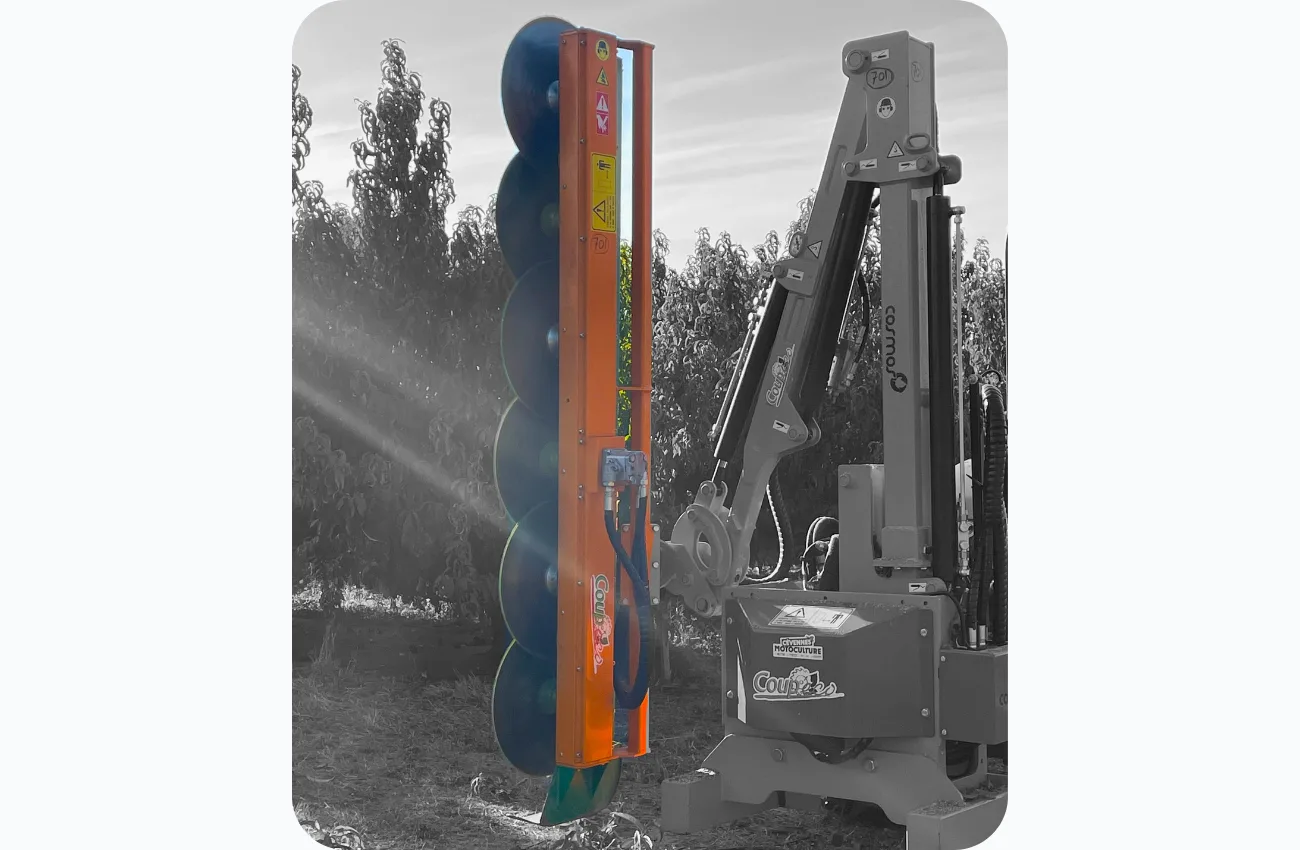

Discover the Lamier 500, designed for fast, precise pruning of trees and hedges. Thanks to its interchangeable cutting tool and adjustable lengths, it can be adapted to any job, ensuring a clean cut and smooth operation on all types of vegetation.
Range
Adapted supports
Versatility for annual pruning
Adjustable cutting lengths to match tree height
Interchangeable cutting tool
Motorization adapted to the carrier’s hydraulic flow
Robust skid plate and protective casing
Available options: universal mechanical adaptation and hydraulic kit
| Pruner | 3500 | 4500 | 5500 | 6500 | 7500 | 8500 | 9500 |
|---|---|---|---|---|---|---|---|
| Number of blades/discs | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Diameter (mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Cutting capacity (mm) - Platters | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Cutting capacity (mm) - Saw blades | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| Cutting length (m) | 1,23 | 1,59 | 1,95 | 2,32 | 2,69 | 3,05 | 3,42 |
| Hydraulic motor | 11 cm3 ; 14 cm3 ; 17 cm3 | 11 cm3 ; 14 cm3 ; 17 cm3 | 11 cm3 ; 14 cm3 ; 17 cm3 | 11 cm3 ; 14 cm3 ; 17 cm3 | 11 cm3 ; 14 cm3 ; 17 cm3 | 11 cm3 ; 14 cm3 ; 17 cm3 | 11 cm3 ; 14 cm3 ; 17 cm3 |
| Hydraulic flow rate and pressure | 27 L/min at 170 bar ; 36 L/min at 140 bar ; 42 L/min at 120 bar | 27 L/min at 170 bar ; 36 L/min at 140 bar ; 42 L/min at 120 bar | 27 L/min at 170 bar ; 36 L/min at 140 bar ; 42 L/min at 120 bar | 27 L/min at 170 bar ; 36 L/min at 140 bar ; 42 L/min at 120 bar | 27 L/min at 170 bar ; 36 L/min at 140 bar ; 42 L/min at 120 bar | 42 L/min at 120 bar | 42 L/min at 120 bar |
| Rotation speed (rpm) | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
| Machine weight (kg) | 86 | 400 | 120 | 155 | 185 | 215 | 250 |
Need answers to your questions ?
The Coup’Eco cutter bar is designed for clean, fast and precise cutting of branches up to 25 mm in diameter. It is particularly effective for maintaining hedgerows, pathways, wooded areas and orchards. Its design minimizes splintering and tearing, promoting healthy regrowth and a clean finish.
Coup’Eco cutter bars can be mounted on a wide range of carriers, including tractors, excavators, front loaders and telescopic handlers. For each machine type, Coup’Eco offers a compatible frame to ensure optimal performance and secure installation.
Disc models are ideal for cutting larger diameter branches, providing power and durability. Knife-plate models deliver a finer finish, making them better suited to regular maintenance and seasonal regrowth. All Coup’Eco cutter bars feature interchangeable heads, so you can tailor the tool to your specific job requirements.
To maintain optimal cutting performance and extend the tool’s lifespan, blades should be sharpened every 40 hours of use.
A Versatile, Modular Cutter Bar for Annual Pruning
For which professionals and applications?
The Lamier 500 is a highly versatile machine primarily designed for annual pruning—an essential task for maintaining hedges, trees, and borders. It’s particularly suited to landscapers, local authorities, and orchard operators who need an efficient tool for shaping hedgerows, maintaining vegetative fences, or working in high-traffic areas.Thanks to its interchangeable cutting system, it can operate in saw-blade mode for branches up to 16 cm in diameter, or in knife-blade mode, which is better suited to annual pruning on finer vegetation (up to around 3 cm). This dual functionality allows seamless adaptation to different vegetation types without changing equipment.
It fits into a wide range of jobs, whether trimming low hedges, maintaining trees, or clearing roadsides.
Why Choose This Cutter Bar?

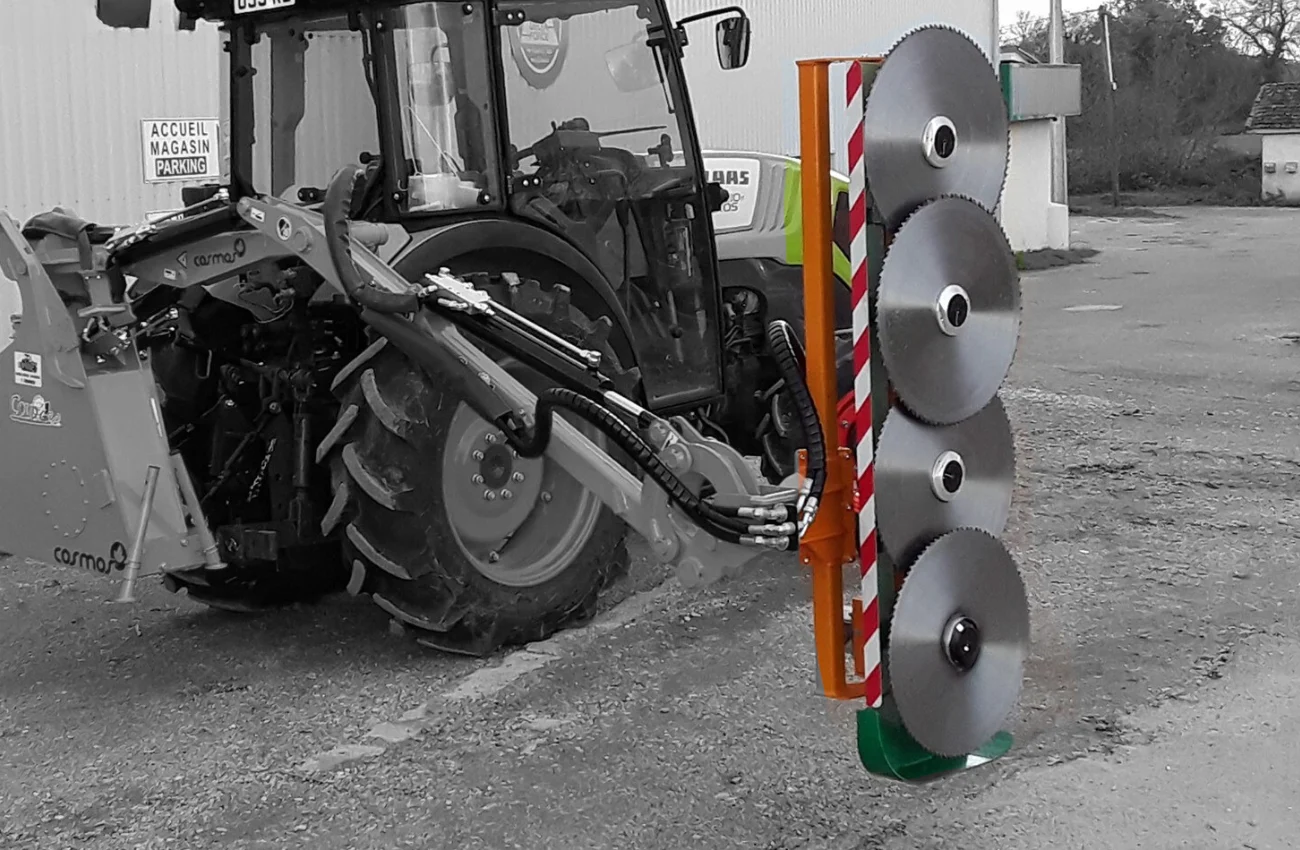

The Lamier 500 stands out for its versatility, lightweight build, and ability to adapt to various maintenance tasks—including hedgerows, landscaped hedges, verges, and borders. It offers two working configurations: saw blades for branches up to 160 mm in diameter, or knife-head plates for lighter pruning up to 30 mm.
Its hydraulic motor adapts to the carrier’s flow rate, ensuring smooth and consistent cutting. The robust welded-steel frame is built to withstand the demands of the field, even under repeated use. Its Poly-V Kevlar-reinforced five-rib belt transmission further enhances reliability while providing flexibility and durability.

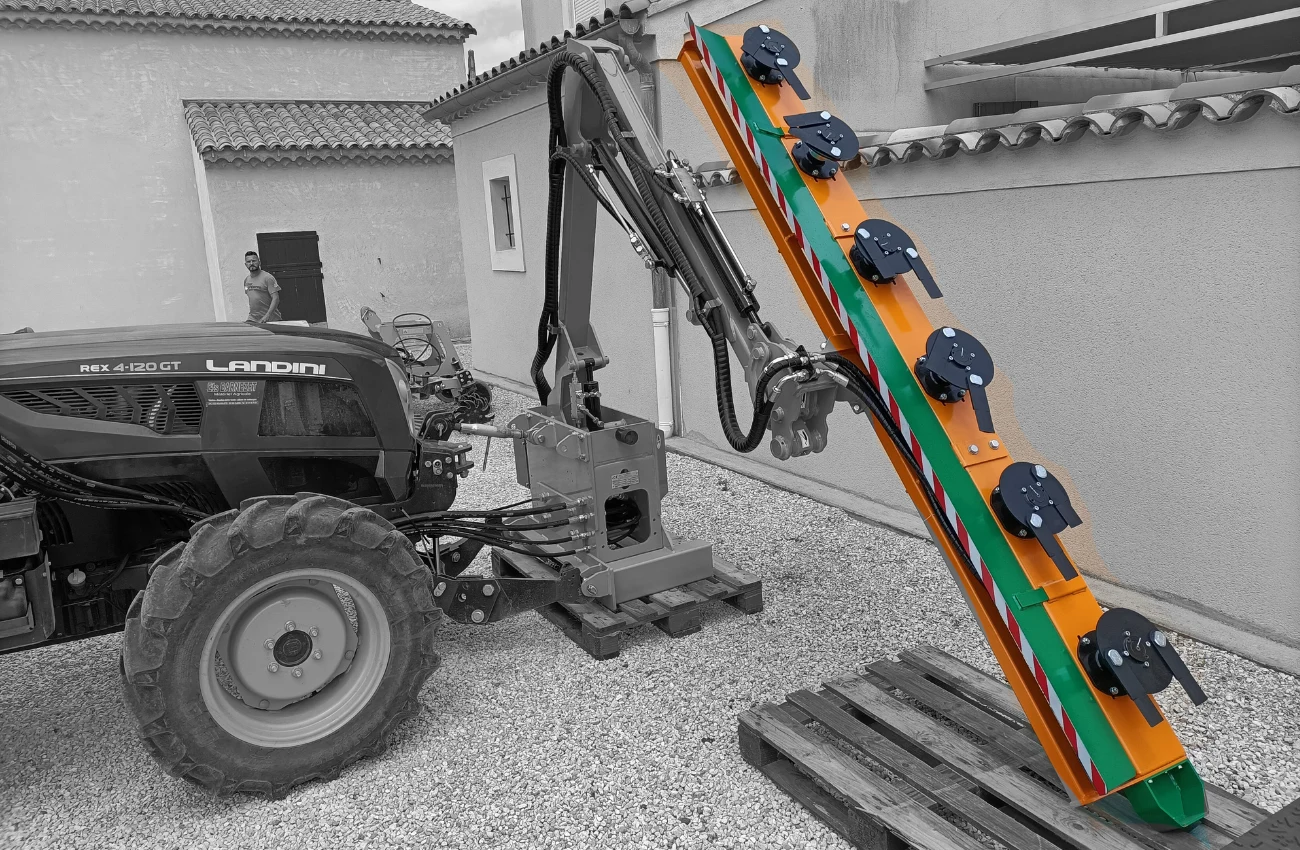

The cutting tool is easily interchangeable, allowing users to switch quickly from one type of job to another. A protective skid plate and casing help safeguard both the operator and mechanical components from debris and impacts.
With optional mechanical adapters and a universal hydraulic kit, the Lamier 500 can be easily mounted on a wide range of carrier machines.
The Coup’Eco Spirit: French Expertise and Durable Machines
Since 1995, Coup’Eco has been designing and manufacturing all its machines in Pons, Charente-Maritime. Every cutter bar is thoughtfully engineered, assembled, and tested to meet the real-world needs of professionals. This local manufacturing presence is a true advantage, guaranteeing reliable machines, responsive service, and fast spare parts availability.
As a pioneer in mechanized pruning, Coup’Eco remains committed to its core goal: making fieldwork easier through reliable, robust, and high-performance machines.Choosing the Lamier 500 means investing in a durable tool that simplifies daily tasks, reduces operator effort, and ensures precise, clean cuts whether working on hedges, trees, or branches.
Choosing the Lamier 500 means investing in a tool built to last, designed to make everyday work easier, reduce effort, and deliver clean, precise cuts—whether trimming hedges, trees, or branches.
